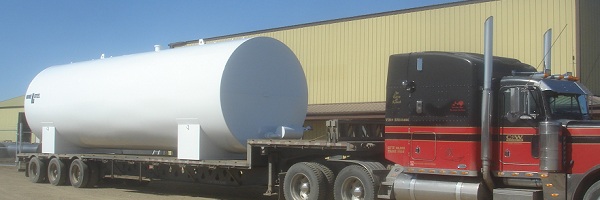

Main Features of our Large Enviros

Select a tab

Features

• Horizontal, above-ground, double wall design to (Old listing ULC S601/S653) new ULC S601-07 Integral Contained
• Ideal for flammable and combustible liquid storage where environmental protection is required
• Multiple compartments if required
• 110% containment
• Corner bollards and heavy-duty skids available

Standard Features


ULC label, identification name plate

Necessary identification and warning decals as per ULC

Installation, Warranty and Maintenance Manual

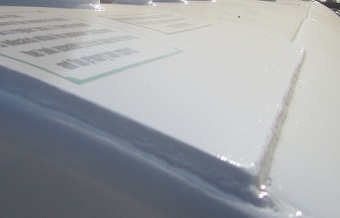

110% containment (no dike required), 300 degree

Wrap over primary tank

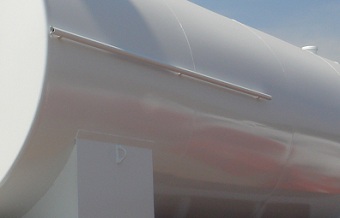

Dip chart supplied and Dip Stick Holder

Water draw off in primary tank


Normal Venting for primary and secondary


Containment Inspection Port

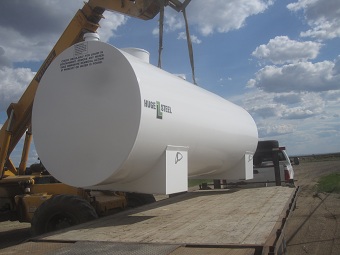

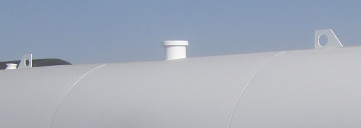

Approved Lift Lugs

Sandblasted to SSPC-SP6

High performance top coat

Manhole/Spillbox Combination for dipping, filling and primary tank access.

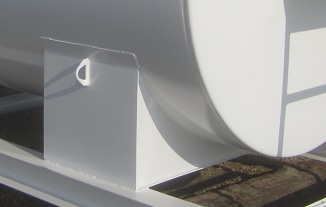

Wide Saddle Base Support


Grounding Lug


Tie Down Lugs

Customizing Options

•  Bottom inload filling

• Ladder, stairs and/or catwalks

• Pump platforms and pumpstands

• Snow hoods

• Discharge and pumping system options (STP's)

• Double bulkheads for multiple compartments

• Cabinets

• Level gauges and overfill prevention

• Various skid options c/w bollards

Fittings

Emergency Vents

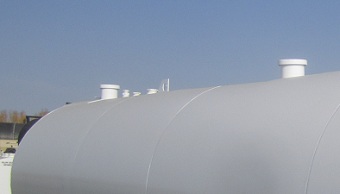

Normal Vents (Vent Stack)

A vent stack is used as the normal vent for the primary tank. This is shipped loose and must be installed by customer at time of install.

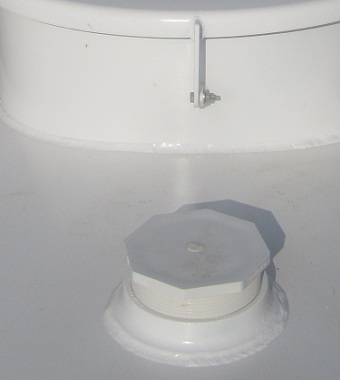

Pump Mount and Spare Fittings

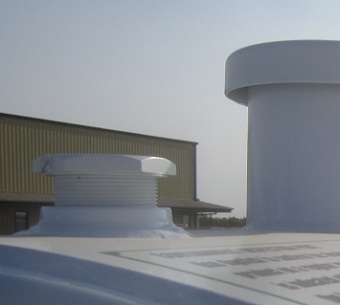

Inspection Port

Plastic Plugs

24" Spillbox

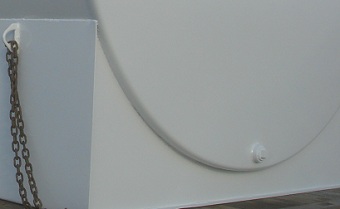

Bottom Drain

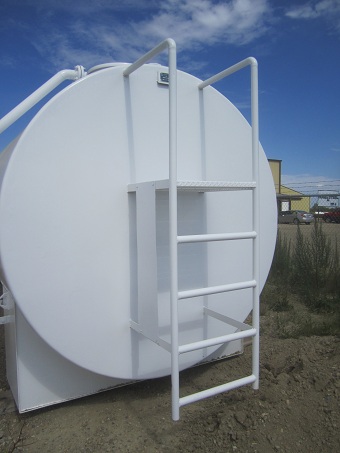

Ladders

We offer both standard and custom ladders.

Either a side of end ladder comes standard with the tank. This is the customer's choice. (End ladders are the most popular)

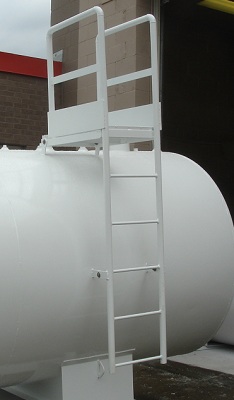

(Right: This is an example of our side mount ladder)

We can weld or bolt on our ladders.

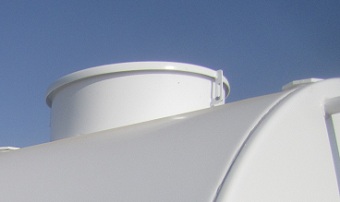

Spillbox

All our large enviros are suited with a 22" spillbox for filling purposes. It is lockable and hinged for ease of use.

Each spillbox is equipped with a small drain so that excess fluid can be drained back into the tank.

All spillboxes have a lockable lid.
